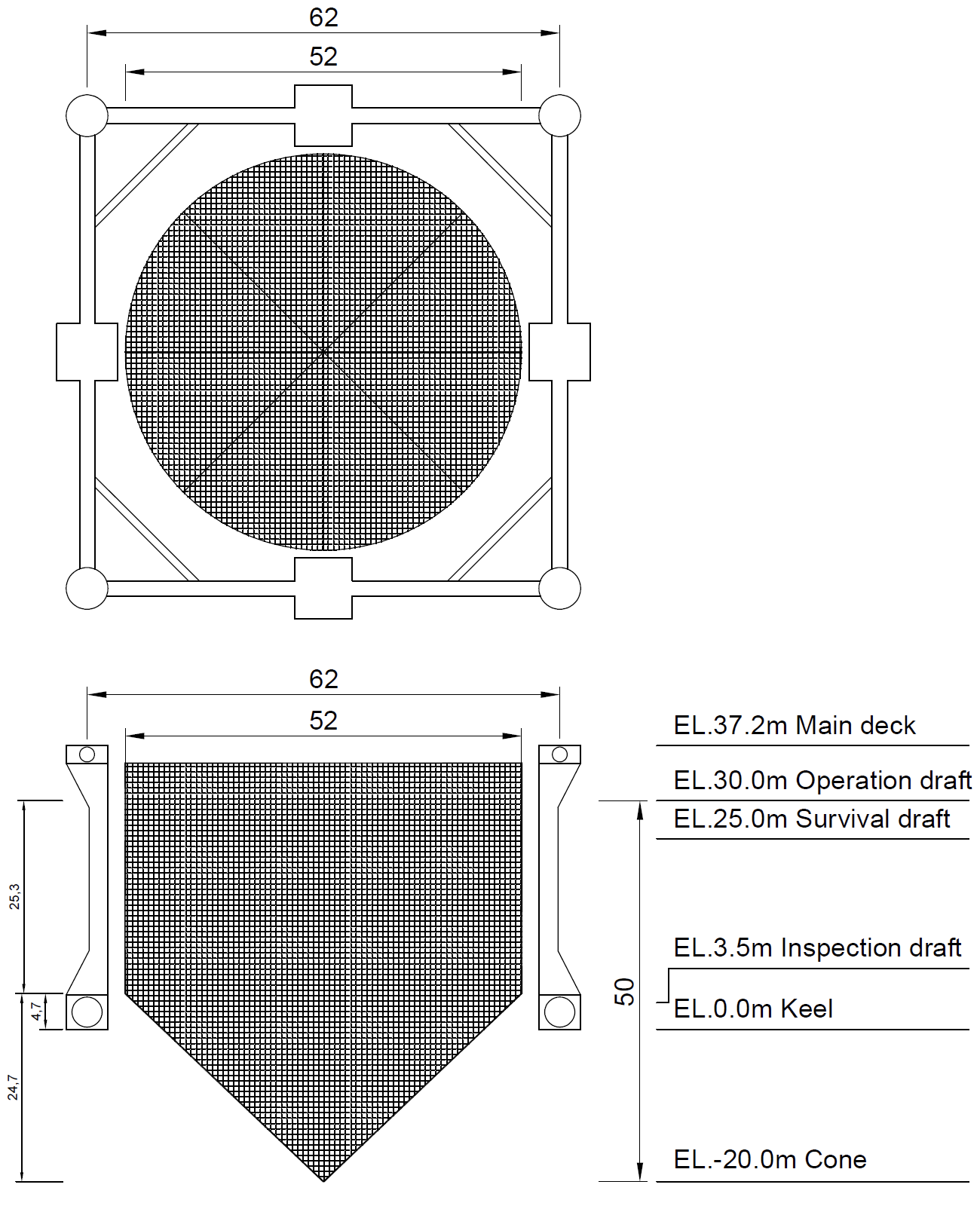

NZ62/1000 - Height & Volume
Diameter
D = 52 m
Side Length
s = 52.00 m
Circumference of net
o = 208 m
Operation draft
ho = 30.0 m
Survival draft
hs = 25.0 m
Volume about pontoon in operation
vo = 63,711 m^3
Volume above pontoon in survival
vs = 53,093 m^3
Height of vertical net bag
hn = 4.7 m
Volume of vertical net bag
vn = 9,981 m^3
Height of cone
hc = 24.3 m
Volume of cone
vc = 17,202 m^3
Total height in operation draft
Ho = 49.6 m
Total volume in operation draft
Vo = 70,932 m^3
Total volume in survival draft
Vs = 60,314 m^3
Density of biomass (Survival)
η = 17 kg/m^3
Density of biomass (normal)
η = 14.5 kg/m^3
Max allowable biomass (survival)
B = 1,025 mT
Mooring Arrangement
Mooring system based on maritime regulations (DNV GL). Identical type of mooring as used on drilling rigs and offshore wind farms.
Designed for 100-year conditions
No. Of lines
6
Total length
800m
Chain/Polyester length
Chain: 50 + 250m
Polyester: 500m
Diameter
C: 100mm R4
P: 167mm
Mooring line weight
C: 356mT
P: 58mT
Anchor type
Suction
Anchor
